As a manufacturer trail master by maas consistently takes into account the wishes of European off-road drivers during the development of new suspension systems. Their needs are as diverse as the variety of European vehicle brands.
Therefore, we have developed three variants of our brand new suspension system for the Mitsubishi L200: With lift kits of +50/50mm, +50/+65 and +60mm/+75mm trail master by maas offers by various types of suspensions unique diversity with system.
Below we have compiled all relevant information and many pictures in high resolution. We are pleased if the press release pique your interest. If you want to publish we beg for a deposit copy.
We are available for any questions or requests for appointments at: news@maas-group.de
Enjoy reading!
Your maas group team
|
 |
 |
|
|
|
Suspension system S57249
+50/50 mm for Mitsubishi L200
(KA0T) from 06
|

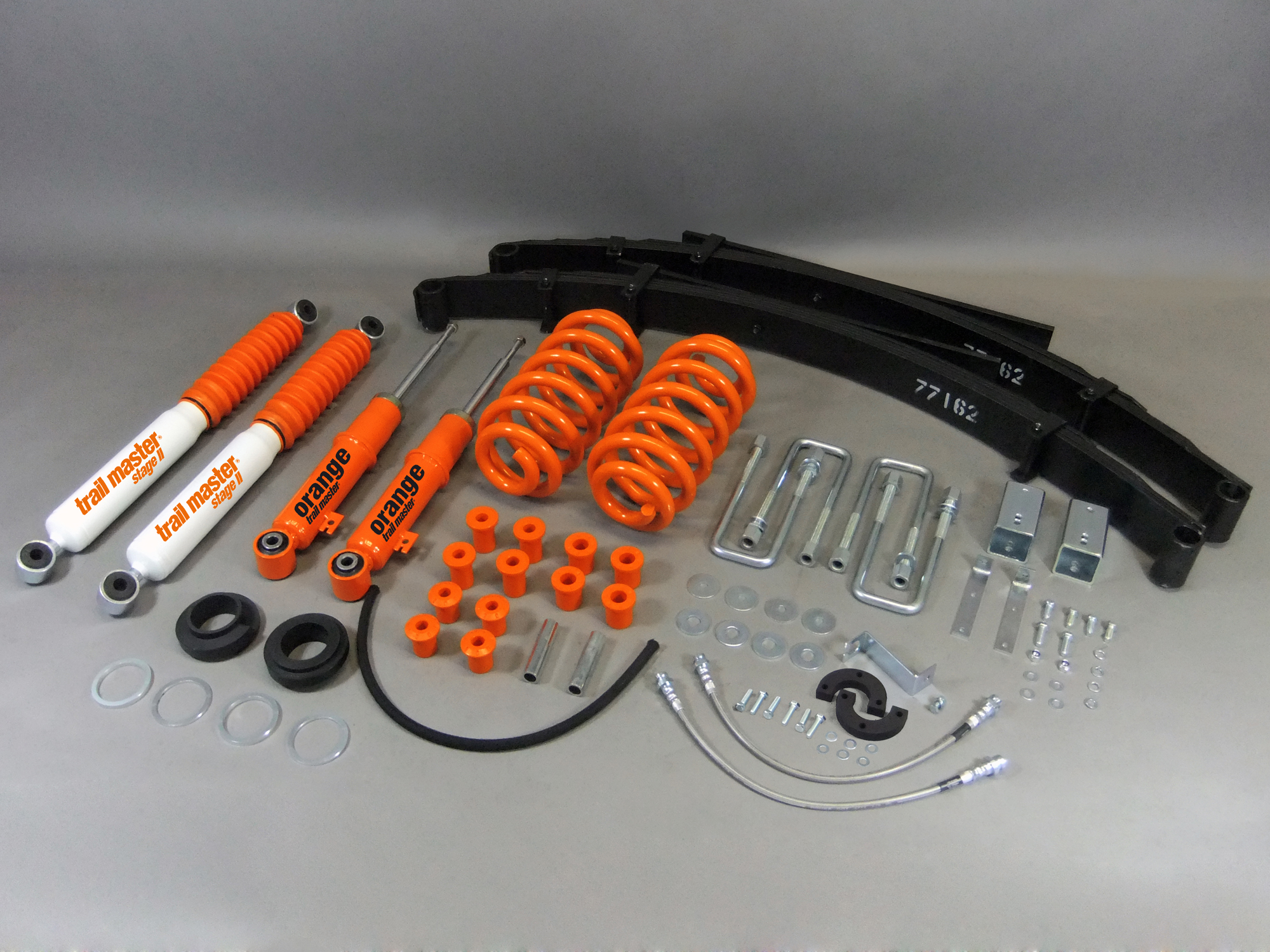

Suspension system S57239
+50/60 mm for Mitsubishi L200
(KA0T) from 06
|

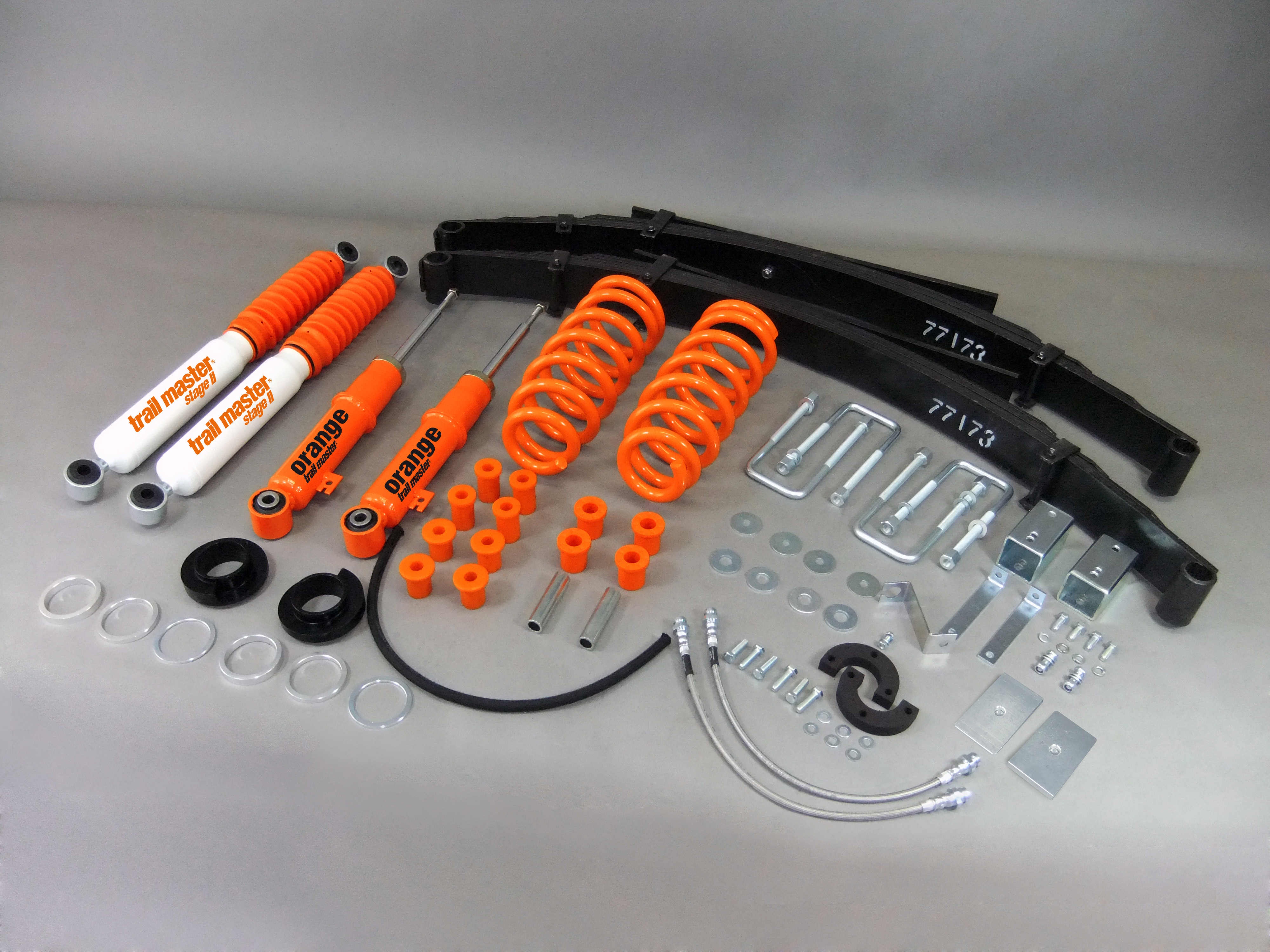

Suspension system S57319
+65/75 mm for Mitsubishi L200
(KA0T) from 06
|
| |
System solution |
|
• Lift kit (+50/+50 mm) with newly developed coil over "orange" struts and rear axle block kit to use the original springs. |
• Lift kit (+50/+60 mm) with coil over "orange" struts, front axle coil springs and rear axle leaf springs for the complete replacement of original springs. |
• Lift kit (+65/+75mm) with coil over "orange" struts, front axle coil springs and rear axle leaf springs for the complete replacement of original springs.
• The lift up to +65 mm on the front axle is achieved through additional adapters. At the rear axle a newly developed leaf spring offers a lift by +75 mm.
• As an internally tuned spring-damper system this combination (+65/+75 mm) is unique on the European market.
|
Front axle |
• At the front axle "orange" struts are used. Using the included collar and the ring coil over kit, the customer can adjust the height of his vehicle at the front of independently- for example after mounting a winch. This possibility of "orange" struts and coil over is patented.
• The characteristic of the "orange" strut has been specially adapted to the new trail master by maas lifting coil springs at the front axle.
|
Rear axle |
• Suspension lift of the rear axle by +50 mm block kit. Use with the original springs. Optimized damping by tuned stage II shock absorbers. |
• For the rear axle, a new leaf spring was developed; a new bushing kit, matching U-Bolt kit and bump stops are included in the lifting system. Furthermore stage II dampers that are adjusted to the spring characteristic of the new leaf springs belong to the scope of delivery. |
• For a significant lifting of the rear axle up to +75 mm a new leaf spring was developed; a new bushing kit, matching U-Bolt kit and bump stops are included in the lifting system. Furthermore stage II dampers that are adjusted to the spring characteristic of the new leaf springs belong to the scope of delivery. |
• For maximum of outgoing movement and thus for the possibility of a large entanglement in off-road use two extended brake hoses, an extended breather hose and the associated mounting hardware are included.
• In conjunction with the newly designed Stage II shocks for the rear axle and ball joint spacer at the front axle it follows in the results in a suspension system that on-road and even in extreme off-road applications provides perfect stability and traction.
|
Delivery |
Front axle:
• 2x coil springs
• 2x “orange” strut including
spring plate and spacer rings
• 2x ball joint spacer
Rear axle:
• 2x +50 mm blocks
• 4x U-bolts
• 2x stage II shock absorber
• 2x extended brake hoses
• 1x extended ventilation hose
for the rear axle differential
• Mounting kit
• Installation instructions
• TÜV certificate
|
Front axle:
• 2x coil springs
• 2x “orange” strut including
spring plate and spacer rings
• 2x ball joint spacer
Rear axle:
• 2x leaf springs +50 mm
• 1x bushing kit
• 4x U-bolts
• 2x stage II shock absorber
• 2x extended brake hoses
• 1x extended ventilation hose
for the rear axle differential
• 2x bump stops
• Mounting kit
• Installation instructions
• TÜV certificate
|
Front axle:
• 2x coil springs
• 2x “orange” strut including
spring plate and spacer rings
• 2x ball joint spacer
Rear axle:
• 2x leaf springs +75 mm
• 1x bushing kit
• 4x U-bolts
• 2x stage II shock absorber
• 2x extended brake hoses
• 1x extended ventilation
hose for the rear axle differential
• front axle adapter
• 2x bump stops
• Mounting kit
• Installation instructions
• TÜV certificate
|
| |
|
|
|
Suspension system S57249
+50/50 mm (Comfort) for the Mitsubishi L200 (KA0T) from 06
|
Suspension system S57239
+50/60 mm (Comfort) for the Mitsubishi L200 (KA0T) from 06
|
Suspension system S57319
+65/75 mm (Comfort) for the Mitsubishi L200 (KA0T) from 06
|

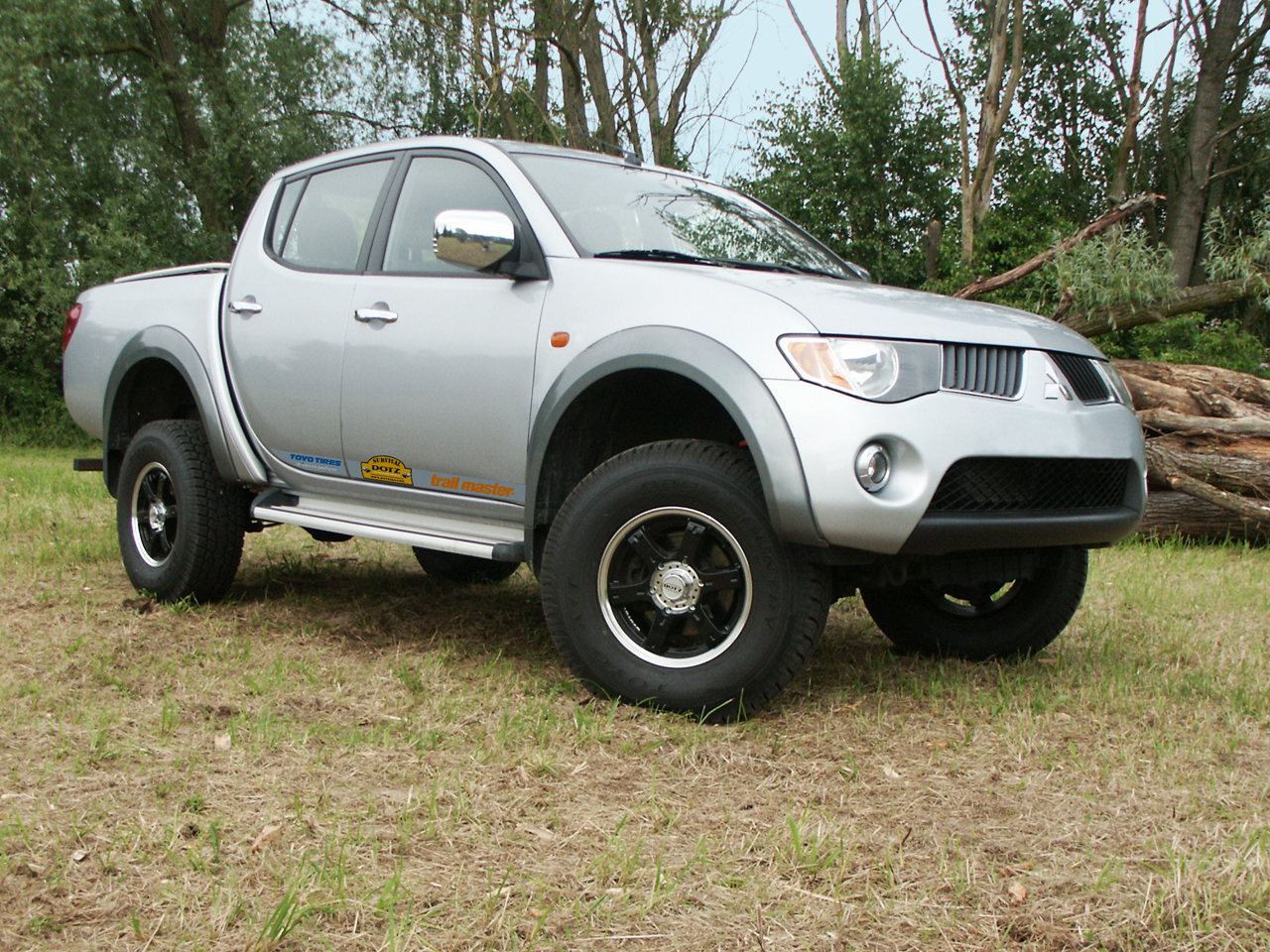

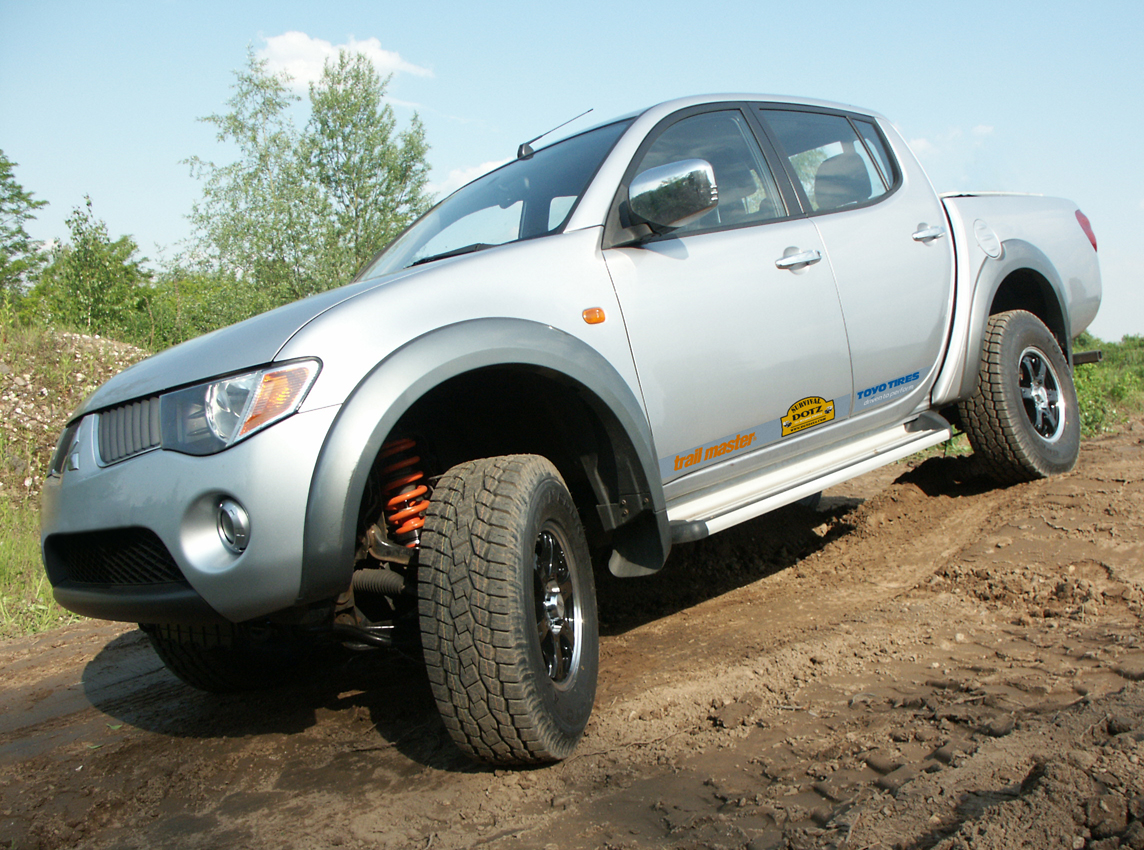

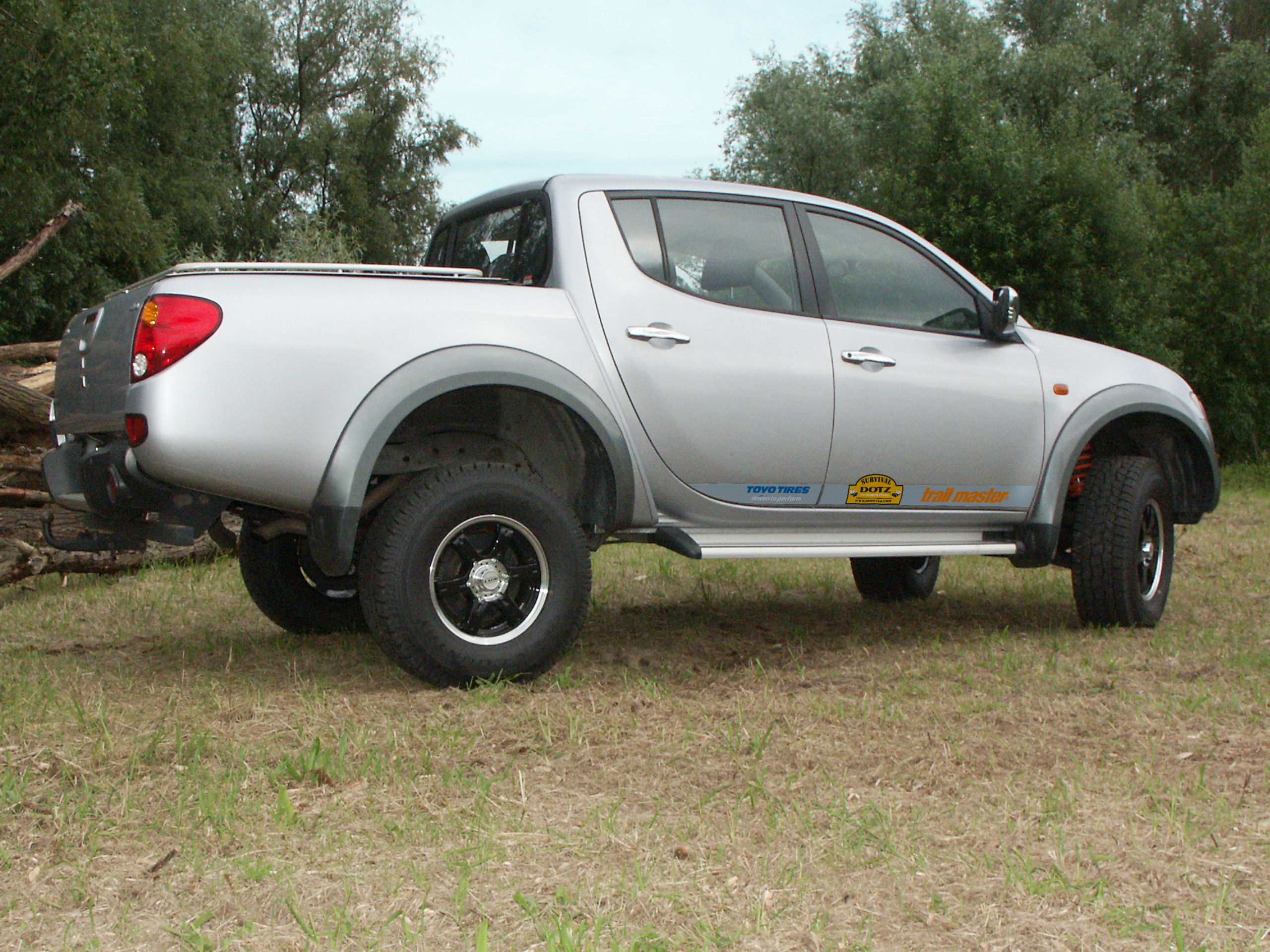

L200
|
L200
|
trail master by maas-Logo
|
To download pictures in good resolution use this link: |
|
To download pictures in printable resolution use this link: |
|
|
Our motto: Give our goods a test!
Not only at trail master by maas all suspension systems and its components are tested in the laboratory and on our test track. We are ready to help if you want to get your own opinion. Whether you want to inform your readers in driving or mounting reports of our suspension systems, or whether you want to give your readers the opportunity to test our own products in the area - we offer the possibility to your magazine.
Try our products!
Write to us or give us a call.
|
| |
About trail master by maas
We are the largest manufacturer of suspension systems for road vehicles
trail master by maas stands for superior suspension technology. We define our own product range and respond quickly to new product requirements for various different off-road missions. As developers, we invest time and knowledge in the processes that are necessary for the production of our suspension systems.
Our exceptionally large range of products, our opportunities for special productions and high quality workmanship distinguish us and have made us to what we are: Europe's largest manufacturer of suspension systems for road vehicles.
We are a manufacturer based in Europe, stand in direct contact with our customers and respond quickly and flexibly to the needs of the drivers. Tens of thousands of vehicles equipped with our suspension technology and operations in more than 20 countries, show, we are ...
Leading the way for off-road suspension technology.
|
| |
About maas group
Technical know-how and some 35 years of experience in off road made the company to the expert for off road automotive engineering and -accessories. Today the small-sized business is an important European dealer for suspension kits for off road vehicles and car accessories.. |
|
|
